What is TandemKV?
A write-efficient KV engine for heterogeneous DRAM–NVM memory that decouples index maintenance from durability. Structure modification operations (SMOs) execute on the DRAM main index first; durable reconciliation with the PMEM shadow index is a separate, runtime-controlled decision — governed by explicit thresholds rather than triggered on every write.
Core contributions
1New control boundary for durable indexing — SMOs need not be synchronous persistence tasks; structural durability is controlled independently by runtime signals
2Dual-index architecture — DRAM main index for foreground access + PMEM shadow index as durable recovery image, with symmetric offset-based addressing for crash-safe reuse
3Adaptive SMO policy — deferred SMOs amortize write cost under random inserts; speculative SMOs (SGPs) provision routing capacity proactively under skewed workloads
4Prototype on Intel Optane PMEM evaluated against Prism, FluidKV, ListDB, DPTree across the full YCSB suite under both uniform and Zipfian distributions
Key terminology
SMOStructure modification operation — node split, merge, or guidepost activation
iNodeInternal routing node in the DRAM main index
vNodeFixed-size append-only value node stored on PMEM
GPGuidepost — stable routing entry partitioning the key space within an iNode
SGPSpeculative guidepost — dormant placeholder pre-filled with predicted split keys
σPath-stability threshold — controls when deferred rebalancing fires in DRAM
δShadow-divergence threshold — controls when the PMEM shadow index must be checkpointed
mNoise-rejection margin — gates SGP allocation on predicted insert pressure

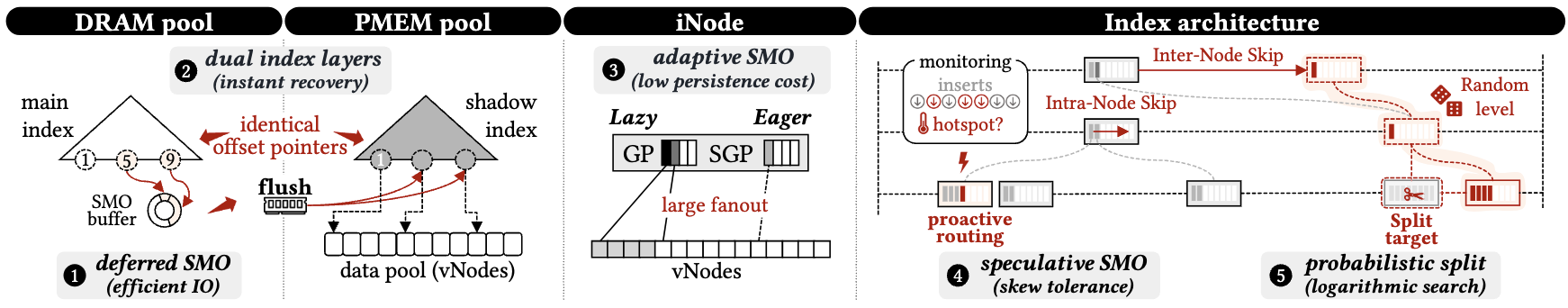

Architecture
TandemKV splits responsibility across a DRAM index that serves every foreground operation and a PMEM image that is updated only by background propagation. The design goal is visible in what does not happen on the critical path: no PMEM index writes, no fences, no pointer fix-up, no synchronous checkpoint.
DRAM-resident main index
Skiplist-style traversal combined with B⁺-tree-inspired wide nodes — Serves all foreground reads and writes. Absorbs all SMOs immediately. Holds iNodes (routing) with references to PMEM vNodes (data). Lock-free traversal with targeted iNode/vNode caching.
PMEM-resident shadow index
An identical offset-based mirror of the DRAM iNode pool acts as the durable restart image with every cross-object reference encoded as a pool index rather than a pointer. Updated only at async checkpoints; can be memory-mapped and reused with no swizzling.
Value storage — persistent vNode pool
A separate data pool of append-only vNodes holds the actual records (separate from the index); writes land in unordered arrays via non-temporal stores. Bloom filters and per-entry fingerprints compensate for the unordered layout. An adaptive size-bounded DRAM Bloom-filter cache promotes filters for hot vNodes in the background.
iNode [dual-guidepost abstraction]
Each iNode maintains two kinds of routing entries that separate stable state from speculative expansion:
GP Lazy path: stable routing entries created on-demand (real routing decisions), delta-logged, durable across checkpoints.
SGP Eager path: dormant placeholders pre-filled with predicted split keys, gated by an atomic visibility bitmap (zero lookup overhead while inactive). When an incoming split validates a predicted key, the SGP slot is linked — a single atomic fetch-or publishes it, replacing what would otherwise be a reactive GP creation. Predicted slots that aren't linked are discarded silently at next reorganization.
GP Lazy path: stable routing entries created on-demand (real routing decisions), delta-logged, durable across checkpoints.
SGP Eager path: dormant placeholders pre-filled with predicted split keys, gated by an atomic visibility bitmap (zero lookup overhead while inactive). When an incoming split validates a predicted key, the SGP slot is linked — a single atomic fetch-or publishes it, replacing what would otherwise be a reactive GP creation. Predicted slots that aren't linked are discarded silently at next reorganization.
Recovery
TandemKV prioritizes immediate availability over exhaustive reconstruction. The recovered index is structurally stale but semantically complete — all committed records remain reachable.
Recovery invariants
1Routing correctness — all traversal paths remain valid; every committed record is reachable from the recovered index
2Bounded search-path inflation — post-crash search depth exceeds the last checkpoint depth by at most δ
Stale-shadow mode (default)
Memory-maps the last checkpoint and immediately begins serving requests. SMOs recorded in the redo log after the last checkpoint are absent from the recovered index.
Recovery time: ~0s. Post-crash search initially degraded by at most δ.
When adaptive replay is enabled, a background thread monitors post-restart write activity. If writes are flowing, the index self-heals through splits and rebalancing. If no writes are detected for a configurable quiet period, the thread lazily replays the WAL in bounded chunks, refreshing the DRAM index incrementally until the log is drained and the thread exits.
Recovery time: ~0s. Post-crash search initially degraded by at most δ.
When adaptive replay is enabled, a background thread monitors post-restart write activity. If writes are flowing, the index self-heals through splits and rebalancing. If no writes are detected for a configurable quiet period, the thread lazily replays the WAL in bounded chunks, refreshing the DRAM index incrementally until the log is drained and the thread exits.
Log-replay mode
Before serving requests, replays the persistent SMO redo log to reconstruct the index state at the crash point. Longer restart time, better post-crash search quality.
Recovery time: 0.05s (δ≈1.01) to 1.65s (δ≈10.0). Preferred when post-crash latency matters more than restart time.
Recovery time: 0.05s (δ≈1.01) to 1.65s (δ≈10.0). Preferred when post-crash latency matters more than restart time.
Recovery procedure (stale-shadow)
// recoveryManager.cpp — RecoveryManager::recoveryOperation()
FUNCTION recoveryOperation()
superNode = pmemInodePool[MAX_NODES - 1] // persistent metadata sentinel
IF superNode.next != 0:
memcpyToDRAM(dramPool, pmemPool, sizeof(Inode) * last_index)
FOR EACH inode with odd seqlock version: // mid-write at crash time
bump version to next even value // unblock reader spin-waits
RETURN superNode.level
END FUNCTION
re-map PMEM pool→
copy shadow image → DRAM→
fix odd seqlocks→
reload runtime metadata→
serve requests
No pointer swizzling, no address translation, no index rebuild. Lightweight runtime metadata (skiplist height, node-allocation counters) is flushed periodically to PMEM and reloaded on restart via the
SuperNode sentinel at pmemInodePool[MAX_NODES - 1].WAL ring buffer
The SMO redo log is a persistent ring buffer on NVM managed by four atomic cursors:
a_consumed_startOldest entry not yet applied to pmem inodes — the replay frontier
a_alloc_endAllocation frontier — may contain partially written entries
a_produced_endFully written entries, ready for CLWB
a_durable_endFlushed and fence-ordered — safe to replay after crash
Cursor positions are persisted in a
CkptLogPersistMeta struct on NVM, guarded by a magic constant to distinguish valid recovery state from uninitialized memory. Two record types: FULL overwrites an entire pmem inode, DELTA patches individual GP slots in-place.// ckpt_log.cpp — replayLog()
FUNCTION replayLog(pmemInodePool)
consumed = a_consumed_start
durable = a_durable_end
IF consumed >= durable: RETURN // nothing to replay
FOR EACH record IN WAL[consumed .. durable):
IF record.type == FULL:
overwrite pmemInodePool[record.inode_id] // full snapshot
ELSE IF record.type == DELTA:
FOR EACH slot IN record.entries:
patch pmemInodePool[record.inode_id].gp[slot]
advance a_consumed_start
END FUNCTION
Adaptive replay (stale-shadow extension)
Writes naturally converge the index: each insert may trigger splits, GP creation, and rebalancing that overwrite the stale post-crash routing state. WAL replay is only necessary when writes stop flowing and the degraded DRAM index remains stuck.
// tandemIndex.cpp — adaptiveReplayThreadExec()
FUNCTION adaptiveReplayThread()
quiet_epochs = 0
WHILE WAL has pending entries:
sleep(SAMPLE_WINDOW)
writes = atomic_exchange(op_write_count, 0)
IF writes > 0:
quiet_epochs = 0 // index self-healing via live traffic
CONTINUE
quiet_epochs++
IF quiet_epochs < IDLE_EPOCHS:
CONTINUE
// No writes for IDLE_EPOCHS — index is stuck, replay a chunk
lazyReplayStep(WAL, BATCH_BYTES)
memcpyToDRAM(dramPool, pmemPool) // refresh DRAM so reads benefit
yield(LAZY_YIELD_US)
THREAD EXITS // WAL drained — no residual polling
END FUNCTION
SAMPLE_WINDOW_MS = 500Epoch length for write-activity sampling
IDLE_EPOCHS = 6Consecutive quiet epochs before lazy replay (default: 3 s)
LAZY_BATCH_BYTES = 256 KBMaximum bytes replayed per step
LAZY_YIELD_US = 200Inter-batch yield to limit foreground interference
Post-crash convergence
The same path-stability metrics used during normal execution continue to fire after recovery. Structural gaps from missing SMOs are repaired incrementally as live traffic triggers reactive and proactive SMOs — without any recovery-specific restructuring. Under typical deployments (δ = 1.1–1.5), the latency overhead is small and often negligible under read-dominated workloads. With adaptive replay enabled, write-active workloads self-heal while read-only workloads converge via background WAL drain within seconds.
